High Efficiency 1KW Automatic Labeling Machine For SMT Production Line

Brand Name : Yushunli

Model Number : YSL-T2

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Jiangsu

MOQ : 1 set

Price : USD 7000~12000

Payment Terms : T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability : 300 sets/ month

Delivery Time : 3 days to 7days

Packaging Details : Plywooden case

Dimension : About 1096 × 1130 × 1426mm

Weight : About 800Kg

Power Supply : AC220V ± 10% 50Hz

Power : 1.0KW

Gas source : 0.4-0.6MPa

Air Pressure : Less than 1L/min (air consumption of each vacuum generator 46L/min)

Contact Now

High Efficiency /High Qaulity Fully Automatic Labeling Machine For SMT Production Line

Parameter

Items Parameter

Complete

machine

 Dimension About 1096 × 1130 × 1426mm
Weight About 800Kg
Power Supply AC220V ± 10% 50Hz
Power 1.0KW
Gas source 0.4-0.6MPa
Air Pressure Less than 1L/min (air consumption of each vacuum generator 46L/min)

Mounting

 Production Max 2500pcs/h 或 1.2-2.5sec/pcs Note 1
Product/vehicle size L50 ×W50-L340 ×W280mm
Product/vehicle thickness 1-6mm
Material frame size

L * W: 2 x 2-100 x 40 mm, Thickness: 0.05-0.3 mm (Special thickness can be customised, diameter over 30mm

needs to be customised.)
Material Specification 1-10pcs/line (roll)
Number of mounting heads 2 PCS
Label Feeder Capacity 2pcs 105mm Smart Feeder (customizable)
Entry direction L-R ,R-L ,L-L ,R-R
Transfer rate Max 600mm/sec
Transport Height 900 ±20mm
Mounting Angle 0-360 °
Mounting accuracy ±0.05mm(excluding material deviation)
Position Accuracy ±0.025mm
Repositioning Accuracy ±0.005mm

Others

 Stripping method Optical fiber detection + software control
Suction test Vacuum detection ,drop mark detection
Product support mode Magnetic thimble ,flexible side clamp
Track widening automatic adjustment
Control Method pc industrial computer
Machine connection SMEMA port
Operating Environment Windows
Division_Purview coded lock
on-line mode Reserved network interface
Human Machine Interface LCD
Input Equipment Keyboard ,mouse
Alarm method Three-color light, buzzer, software warning popover

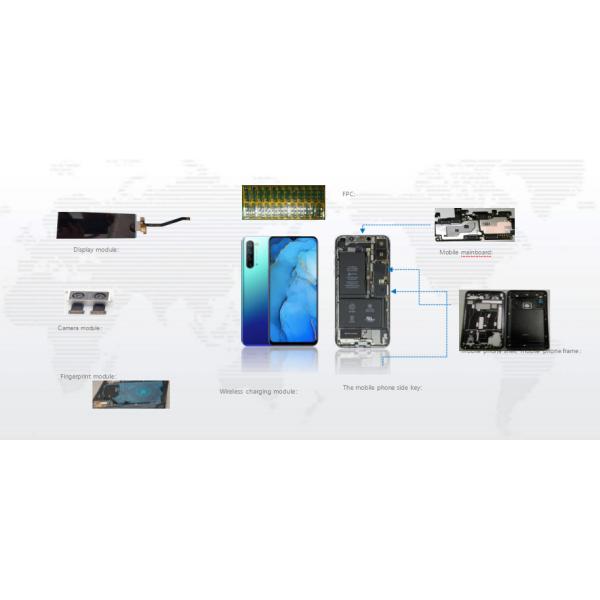

Cellphone Application

High Efficiency 1KW Automatic Labeling Machine For SMT Production Line

Quality Assurance

High Efficiency 1KW Automatic Labeling Machine For SMT Production Line High Efficiency 1KW Automatic Labeling Machine For SMT Production Line

After the equipment is installed, laser interferometer, quadratic element and other instruments are used for accuracy detection and correction, and then 72-hour aging test and actual production test are carried out. Only after all tests meet the requirements, the equipment can be deliveried.
